ANXIN PC transparent plastic corrugated polycarbonate sheet for roof construction corrugated sheet roofing
Product description:

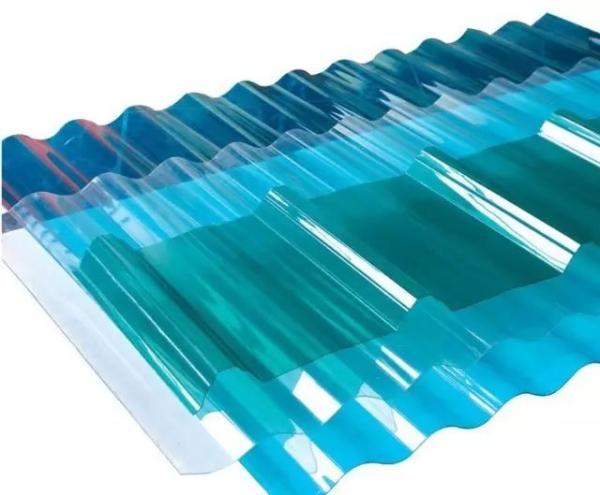

PC wave board is a kind of high quality, strong toughness of polycarbonate wave board, its characteristics for high impact resistance, clear, light weight, diversity and uv tolerance.PC wave board can also be used as the roofing material for industrial and agricultural buildings.PC modification can resist acid and alkali, need to add UV to resist aging
Specifications:
| Product | Polycarbonate Solid Corrugated Sheet |
| Material | 100% bayer material or sabic material or customized |
| Place of origin | Guangdong, China |
| Color | Clear, Blue, Lake Blue,Green, Bronze, Opal or Customized |
| Standard Width | 740mm,830mm,900mm,930mm or can be cut |
| Thickness | 0.7mm-5mm |
| Length | 5800mm,11800mm other size is available |
| Certification | ISO 9001:2008 SGS |
| Surface | Anti-fog, UV protection |
| UV thickness | 50 micron |
| Retardant standard | Grade B1(GB Standard) |
| Technology | Co-extrusion |
| Features | 1) High light transmission: Up to 85% that of same thickness of general glass.
2) Excellent impact resistance: 80 times that of glass.
3) Weather and UV resistant-properties retained for years: Temperature resistance range is 40°C ~ +120°C, with an ultraviolet coextruded film on the sheet surface. It can prevent the resin fatigue or yellowing caused by the ultraviolet.
4) Light weight: Only 1/12 of the weight of glass of the same thickness. It can be easily cold bent as well as thermal shaping.
5) Flame resistance: High fire performance rating is class B1.
6) Sound and heat insulation: Superb sound insulation for freeway barrier and super thermal insulation save energy.
7) An engineering plastic of excellent integration capability. It has outstanding physical, mechanical, electrical and heat capabilities. |
| Samples | Free samples will send you for test(Freight will be on your account) |
Embossed Polycarbonate Sheet Techniacal Data:
| Impact strength | 850J/m |
| Light transmission | 70%-85% for different thickness of clear color |
| UV resistance | 50μm UV layer, can filter 99% ultraviolet radiation in sunlight |
| Coefficient of thermal expansion | 0.065 mm/m°c |
| Service temperature | -40°c to 120°c |
| Heat conductivity | 2.3-5.0 W/m2 °c |
| Tensile strength | >60N/mm2 |
| Flexural strength | 100N/mm2 |
| Tensile street at break | >65mPa |
| Heat deflection temperature | 140°c |
| Soundproof index | 4mm thickness--27dB,5mm--28dB,6mm--29dB |
Application:
1.Sky light system.
2.Roof light for office buildings, department stores,hotels,villas,stadiums,schools.
3.Amusement centers,hospitals etc.
4.Transportation airline, containers, front wind shields of Motorcycles. Airplanes, trains, liners, vehicles, motors boats, submarines and police glass shields.
5.Indoors swimming pools,sun bath pools,greenhouse roofs and sidings.
6.Subway exits,parking lots,garage tents,bus stops,terminals,shopping arcades.
7.Large stadium and rain tents,pagodas,hallway tent.
8.High class indoor decoration, such as walls, windows roofs and screens.
9.Satety roof light for airports and plants.
10.Sign boards for advertisement, sky light cover.
Product specification of Embossed sheet polycarbonate :
| Item | Standard width (mm) | Thickness (mm) | Weight (kg/m2) | Min curving radius (mm) | General color | Remark |
| PC embossed sheet | 1220 1560 1820 2100 | 2.0 | 2.4 | 360 | Clear Opal Blue Green Bronze Orange | 1.5mm-3.0mm, 30m/roll 3.6mm-4.5mm, 18m/roll 5mm or above packed as sheet |
| 2.4 | 2.88 | 430 |
| 3.0 | 3.6 | 540 |
| 3.8 | 4.56 | 680 |
| 4.0 | 4.8 | 720 |
| 5.0 | 6 | 900 |
| 6.0 | 7.2 | 1080 |
Note: Special colors and specifications can be customized.
FAQ:
1.What kind of a company we are ?
We are a manufacturer located Guangdong, China .We have gained good reputation among our customers for our professional,warm and thoughtful service, Because we know that a long terms business based on the quality control ,delivery time etc.
2.Is your company a factory or trade company ?
We have a factory ourself , we are on this business for few years in China.Our factory is very famous for surrounding countries and region
3.What's the quality assurance we provided and how do we control quality ?
1) Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. Besides, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2) 100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels
4.How many different kinds of PC sheet can your company produce?
Our company now have following several products: Glittering Polycarbonate Sheet,Multi-wall Structure Polycarbonate Sheet,Greenhouse Polycarbonate Sheet, General Polycarbonate Solid Sheet,Advertising Polycarbonate Sheet,Polycarbonate Embossed Sheet, Polycarbonate Frosted Sheet, Soundproof Polycarbonate Sheet, Greenhouse Polycarbonate Sheet etc.
7.Won’t a polycarbonate roof make things very hot?
Polycarbonate roofing sheets come with an energy reflective coating, which helps solve this problem. Moreover,polycarbonate sheets have excellent insulating properties so that heating costs are considerably
reduced during intermediate seasons.
8. Can I install polycarbonate sheets myself ?
Polycarbonate sheets are particularly user-friendly and very light, so that fewer cross bars are needed. This makes the supporting structure more straightforward and cheaper.
9. Do the sheets break very easily?
No! Polycarbonate sheets are not only extremely impact resistant but thanks to their temperature and
weather resistance they have a much longer service life.
10.Is polycarbonate sheet bad for the environment?
Polycarbonate sheets are a very sustainable material that can be recycled and does not emit toxic substances during combustion. Moreover, there are sustainable polycarbonate sheets being manufactured using 20% renewable energy!
11.What will happen in the event of a fire ?
Fire safety is one of polycarbonate's strong points. Polycarbonate sheeting is flame retardant and do not emit toxic substances, which is why they are so often incorporated in public buildings, where the most stringent safety regulations apply.
12.Can you custom my design?
Yes we provide both OEM and ODM service.
