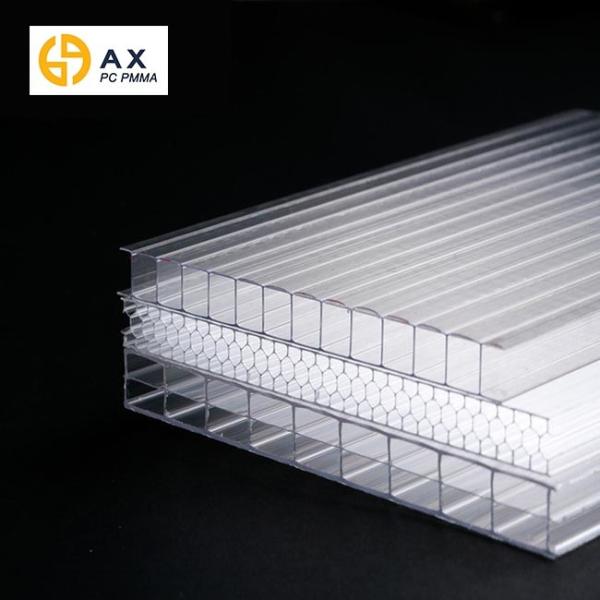

Roofing material Polycarbonate pearl white double wall
Polycarbonate roof sheet with Ultraviolet proof
Features of Products:
1. Light Transmission:
the light transmission reaches 12%-82% depending upon colour and
thickness
2. Environmental protection:
Made of environmental protection materials,the product is UV
resisting.non-radioactive and pollution-free
3. Thermal Insulation:
Practical hollow form reduces the energy consumption
.therefore.saves the energy cost
4. Energy saving:
The hollow form and polycarbonate resin offer significant advantage
for sound insulation
5. Fire Retardancy:
Fire retardanct grade B1 is decided by the national Gb8724-97
test,without fire drop nir poisonous gas
6. Impactresistance:
Its outstanding toughness offers greater protection against
breakage during transportation,installation and usage. the impact
strength is 10-27 times as much as plexiglass
7. Sound Insulation:
PC Sun sheet can retard heat-energy transmission more effectively
than glass.It can obviously reduce energy consumption when used in
air-conditioned buildings.
8. Weather Ability:
It has super-weather ability ,which maintains excellent performance
in wide temperature range from -40℃ to 120℃
9.Easy installation:
Easy to install and can be cold bent
10. UV-protection
Attributing to proprietary UV surface,Nature pc sun sheet remains
perfect mechanical and optical performance after exposed to exterme
weather for a long time
| Item name | Double wall polycarbonate hollow sheet |
| Type | Twin-wall |
| Color | Clear, Opal, Lake-blue, Dark-blue, Green , Brown , Orange, Red or
customized |
| Thickness | 4mm-12mm |
| Width | The standard width can be 1220mm to 2100mm |
| Surface | Anti-fog, UV protection |
| Length | 5800mm, 6000mm, 11800mm,12000. Other size is available. |
| Material | 100% virgin Bayer material. |
| Sample | Free sample for your test |
| Structure | 2-wall, 4-wall, honeycomb |
Specifications of sun sheet
| Thickness | Length& Width (mm) | Min Curving Radius | Weight | Light Transmission | Effect of Soundproof | Standing Colour |
| 4mm | 6000 ×2100 | 700mm | 1.0Kg/㎡ | 82% | 14(dB) | Clear Opal, Lake-blue Dark-blue Green Brown Orange Red or as per request |
| 6mm | 6000 ×2100 | 1050mm | 1.4Kg/㎡ | 81% | 17(dB) |
| 8mm | 6000 ×2100 | 1400mm | 1.5Kg/㎡ | 79% | 18(dB) |
| 10mm | 6000 ×2100 | 1750mm | 1.7Kg/㎡ | 76% | 19(dB) |
| 12mm | 6000 ×2100 | 2100mm | 2.0Kg/㎡ | 72% | 20(dB) |
Remark:
1. Keep in mind the minimun radiu for cold bent while installation
andtransportation, otherwise nature decline all responsiblity for
this
2. Other size and colors available as your requirement 3.If the width is less than 1200mm, an extra charge will be charged
for raw material waste |
Products Introduction
The panels are extensively used in public buildings.industrial
buildings,civil buildings as lighting and awning,and for interior
and exterior decoration lf commercial buildings,in waiting-room and
passage roofs of modern railway stations.airports,harbors,in
gardens,agricultural greenhouses and livestock houses,in pavilions
and corridors of amusement places,in sign advertisement,light box
advertisement and showroon layout,in expressway and city viaduct
sound insulation,in indoor partition or screen decoration,etc.
Torage and maintenance:
1. PC sun sheet has pe protective films on its both sides.the side
with printed marks has been treated with UV.when installed,this
side must be put toward sunlight
2. In storage,keep away from direct sunshine and keep the storing
place in good ventilation.
3. Please use neutral soap or water with nonaggressive cheanser to
chean sun sheet,avoid scratching sun sheets' surface.remove the
protective film right away after installation.
Packaging Details :
1. with pallet Bulk cargo packing: 2 tons per pallet, use wooden
pallets and iron pallets on bottom, with packaging film packages
all around ensure transportation security.
2.convention acrylic sheet packing: covered with craft paper or PE
film on double sides ,the covered film without any our company
sign.
3.one container load packing: 20-23 tons of a 20 foot container
with 10 -12 pallets
Shipping:
1. Port :GuangZhou ShenZhen ShangHai
2. By air transport :4-7days
3. Internation express ,like DHL,TNT,UPS,FEDEX,3-5 days (door to
door)
4. By sea :10-25days
Trade Terms:
1. Payment : T/T,Western Union,Money Gram,Paypal (30%
deposit,Balance before delivery)
2. Delivery time : 5-10 days after get your deposit
3. OEM is also acceptable
NOTE:
To connect polycarbonate sheet and prevent dust go inside sheet.
Harmony for jointing two sheets together to make the all
construction more beautiful
