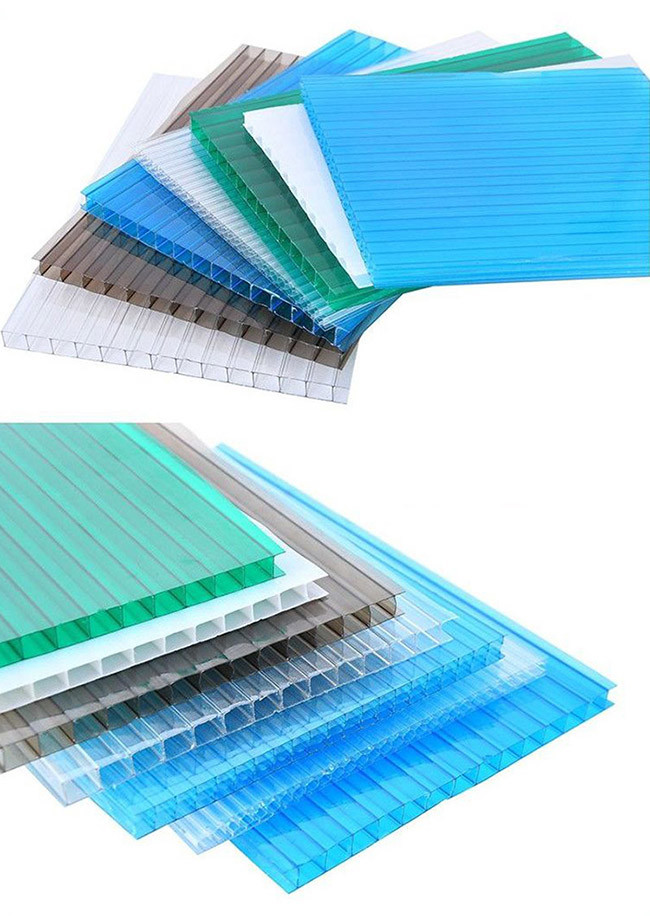

ANXIN polycarbonate roof sheet for roofing colorful or clear color
plastic panel
Features of Products:
1. Light Transmission:
the light transmission reaches 12%-82% depending upon colour and
thickness
2. Environmental protection:
Made of environmental protection materials,the product is UV
resisting.non-radioactive and pollution-free
3. Thermal Insulation:
Practical hollow form reduces the energy consumption
.therefore.saves the energy cost
4. Energy saving:
PC Sun sheet can retard heat-energy transmission more effectively
than glass.It can obviously reduce energy consumption when used in
air-conditioned buildings.
5. Fire Retardancy:
Fire retardanct grade B1 is decided by the national Gb8624-97
test,without fire drop nir poisonous gas
6. Sound Insulation:
The hollow form and polycarbonate resin offer significant advantage
for sound insulation
7. Impactresistance:
Its outstanding toughness offers greater protection against
breakage during transportation,installation and usage. the impact
strength is 10-27 times as much as plexiglass
8. UV-protection
Attributing to proprietary UVsurface,Nature pc sun sheet remains
perfect mechanical and optical performance after exposed to exterme
weather for a long time
9.Easy installation:
Easy to install and can be cold bent
10. Weather Ability:
It has super-weather ability ,which maintains excellent performance
in wide temperature range from -40℃ to 120℃
Torage and maintenance:
1. PC sun sheet has pe protective films on its both sides.the side
with printed marks has been treated with UV.when installed,this
side must be put toward sunlight
2. In storage,keep away from direct sunshine and keep the storing
place in good ventilation.
3. Please use neutral soap or water with nonaggressive cheanser to
chean sun sheet,avoid scratching sun sheets' surface.remove the
protective film right away after installation.
Product Parameter

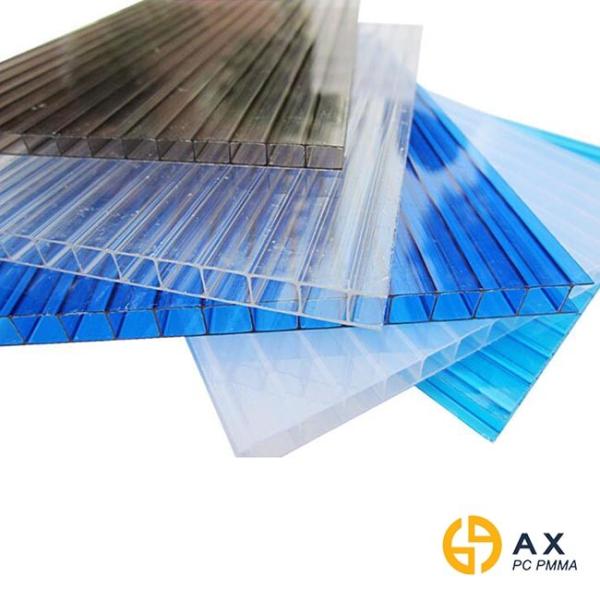

| Item name | Polycarbonate hollow sheet twin wall sun sheet twin |
| Type | Twinwall |
| Color | Clear, Opal, Lake-blue, Dark-blue, Green , Brown , Orange, Red or
as per request |
| Thickness | 4mm-12mm |
| Width | The standard width can be 1220mm to 2100mm |
| Length | 5800mm, 6000mm, 11800mm,12000. Other size is available. |
| Surface | Anti-fog, UV protection |
| Material | 100% virgin PC material. |
| Sample | Free sample for your test |
| Structure | 2-wall, 4-wall, honeycomb |
Specifications of sun sheet
| Thickness | Length& Width (mm) | Min Curving Radius | Weight | Light Transmission | Effect of Soundproof | Standing Colour |
| 4mm | 6000 ×2100 | 700mm | 1.0Kg/㎡ | 82% | 14(dB) | Clear Opal, Lake-blue Dark-blue Green Brown Orange Red or as per request |
| 6mm | 6000 ×2100 | 1050mm | 1.4Kg/㎡ | 81% | 17(dB) |
| 8mm | 6000 ×2100 | 1400mm | 1.5Kg/㎡ | 79% | 18(dB) |
| 10mm | 6000 ×2100 | 1750mm | 1.7Kg/㎡ | 76% | 19(dB) |
| 12mm | 6000 ×2100 | 2100mm | 2.0Kg/㎡ | 72% | 20(dB) |
Remark:
1. Other size and colors available on special order
2. Keep in mind the minimun radius for cold bent while installation
and transportation, otherwise nature decline all responsiblity for
this |
Packaging Details :
1. convention acrylic sheet packing: covered with craft paper or PE
film on double sides ,the covered film without any our company
sign.
2. with pallet Bulk cargo packing: 2 tons per pallet, use wooden
pallets and iron pallets on bottom, with packaging film packages
all around ensure transportation security.
3. onel container load packing: 20-23 tons of a 20 foot container
with 10 -12 pallets
Trade Terms:
1. Payment : T/T,Western Union,Money Gram,Paypal (30%
deposit,Balance before delivery)
2. Delivery time : 5-10 days after get your deposit
3.OEM is also acceptable
Shipping:
1. Port :GuangZhou ShenZhen ShangHai
2. By air transport :4-7days
3. Internation express ,like DHL,TNT,UPS,FEDEX,3-5 days (door to
door)
4. By sea :10-25days
NOTE:
To connect polycarbonate sheet and prevent dust go inside sheet.
Harmony for jointing two sheets together to make the all
construction more beautiful
Top 11 reasons why customers choose ANXIN:
1. ANXIN is a professional acrylic and PC sheet factory with 17
years history and more than 12 years of export experience !
2. Customer is our partner ! ANXIN aim to assist you expand market,
to be No.1 in plastic industry !
3.Thickness tolerance less than ±0.2mm !
4.ANXIN Promise will never release unqualified products !
5. 100% pure Mitsubishi/Lucite raw materials, ensuring the quality
from the production source !
6.Have professional sales team more than 30 person, to help you
solve the problem any time !
7.Clear acrylic can reach 94 % high light transmittance ! Color
acrylic no fade in 8-10 years outdoor !
8.Super performance in laser cut, Uv print, glue no crack, no
yellow !
9.Quality is life ! with strict quality control system,supervise
the whole process from raw materials, production, quality
inspection, packaging and delivery!
10. ANXIN have own delivery department, make sure fast delivery and
regular feedback of production progress !
11. Professional after-sales team provides 24-hour online service !
ANXIN polycarbonate roof sheet for roofing colorful or clear color
plastic panel
